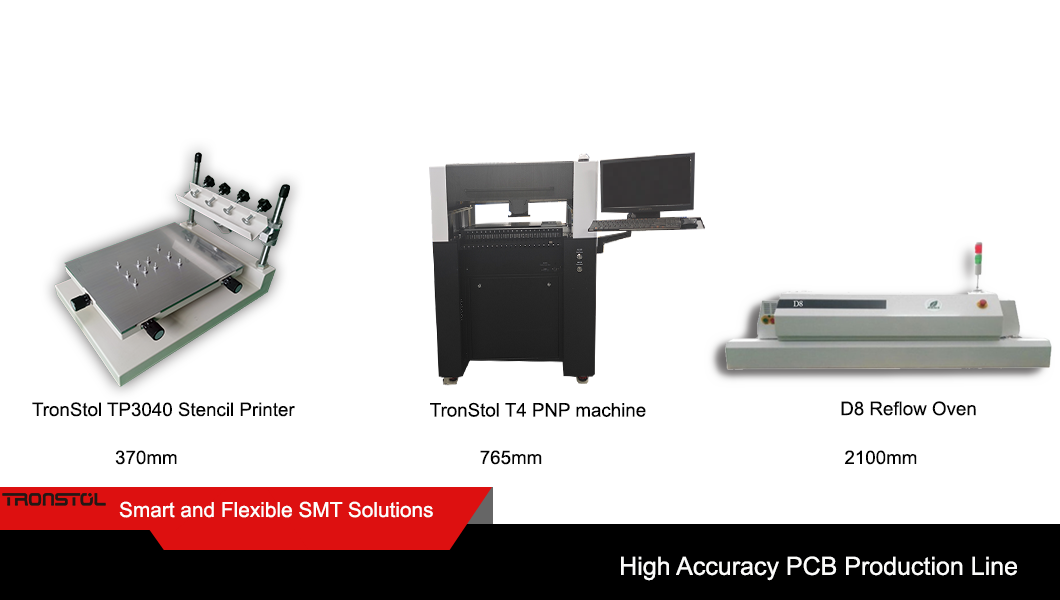

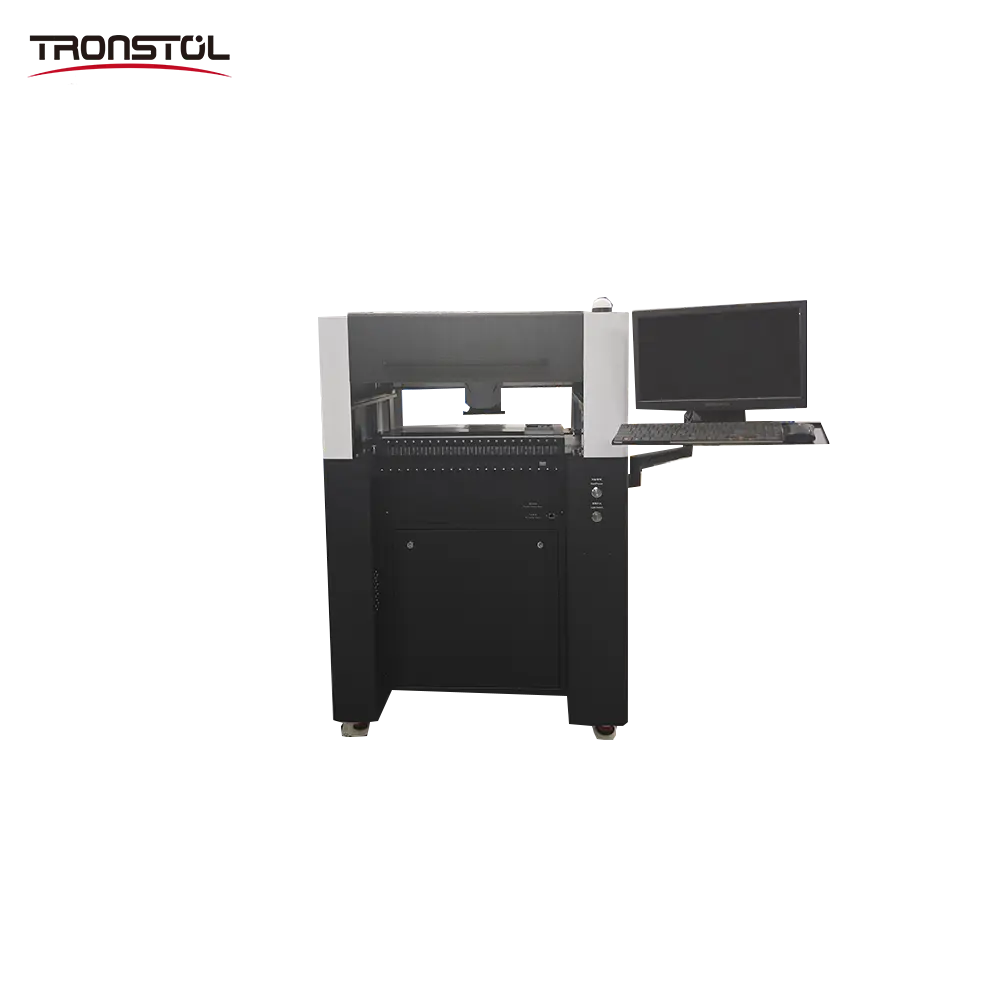

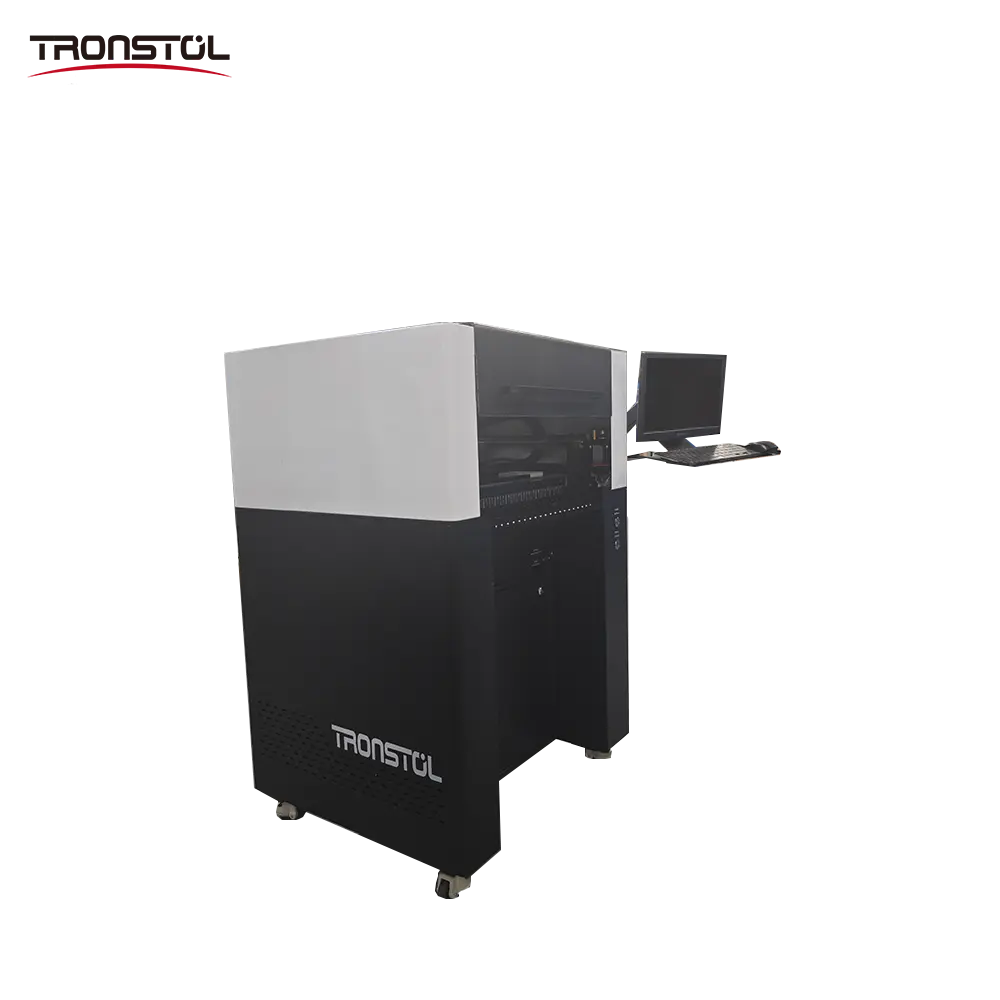

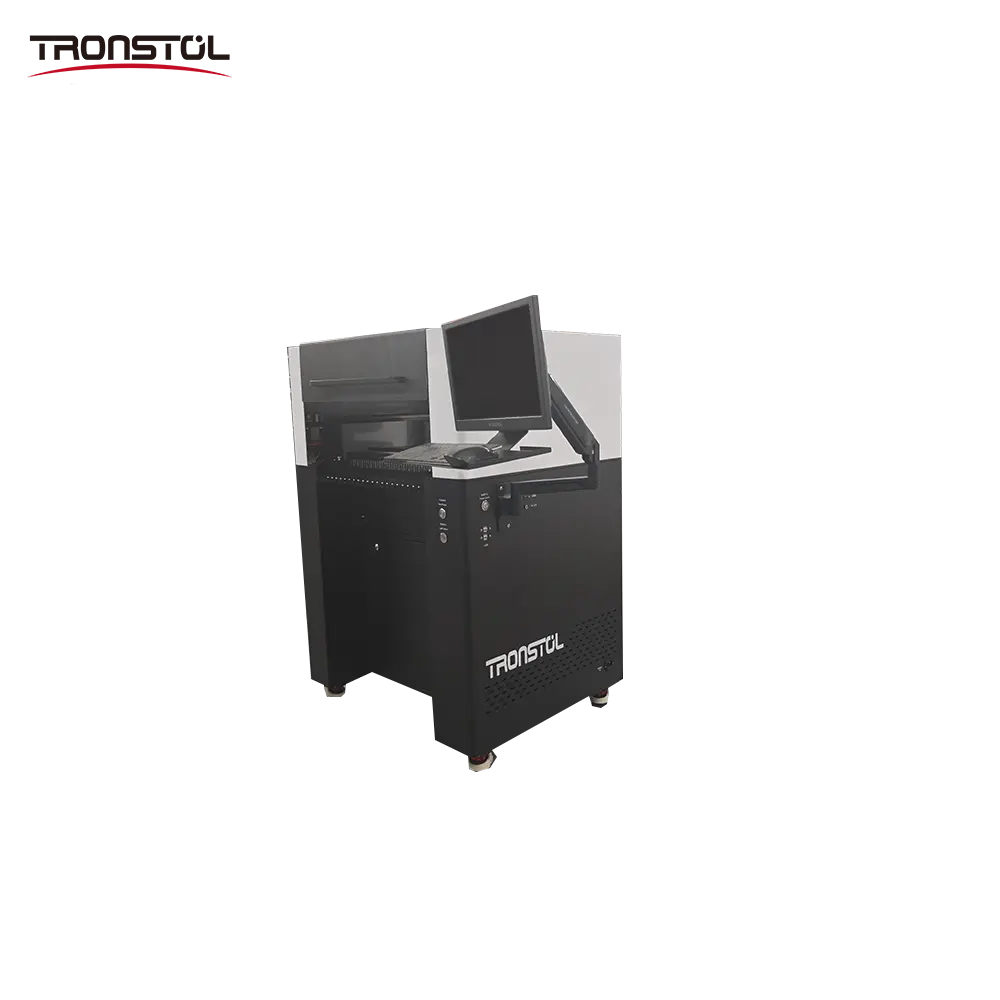

Tronstol T4 pick and place machine is the most cost-effective for prototype and small production lines. With the combination of Tronstol intelligent electric feeder and material library, you can realize PCB change operation more quickly and reduce programming time. It is very small and can meet the production needs of prototype in the office.With the auto-nozzle changer,it can use 8 nozzles with 4 heads together to meets the complex PCB.

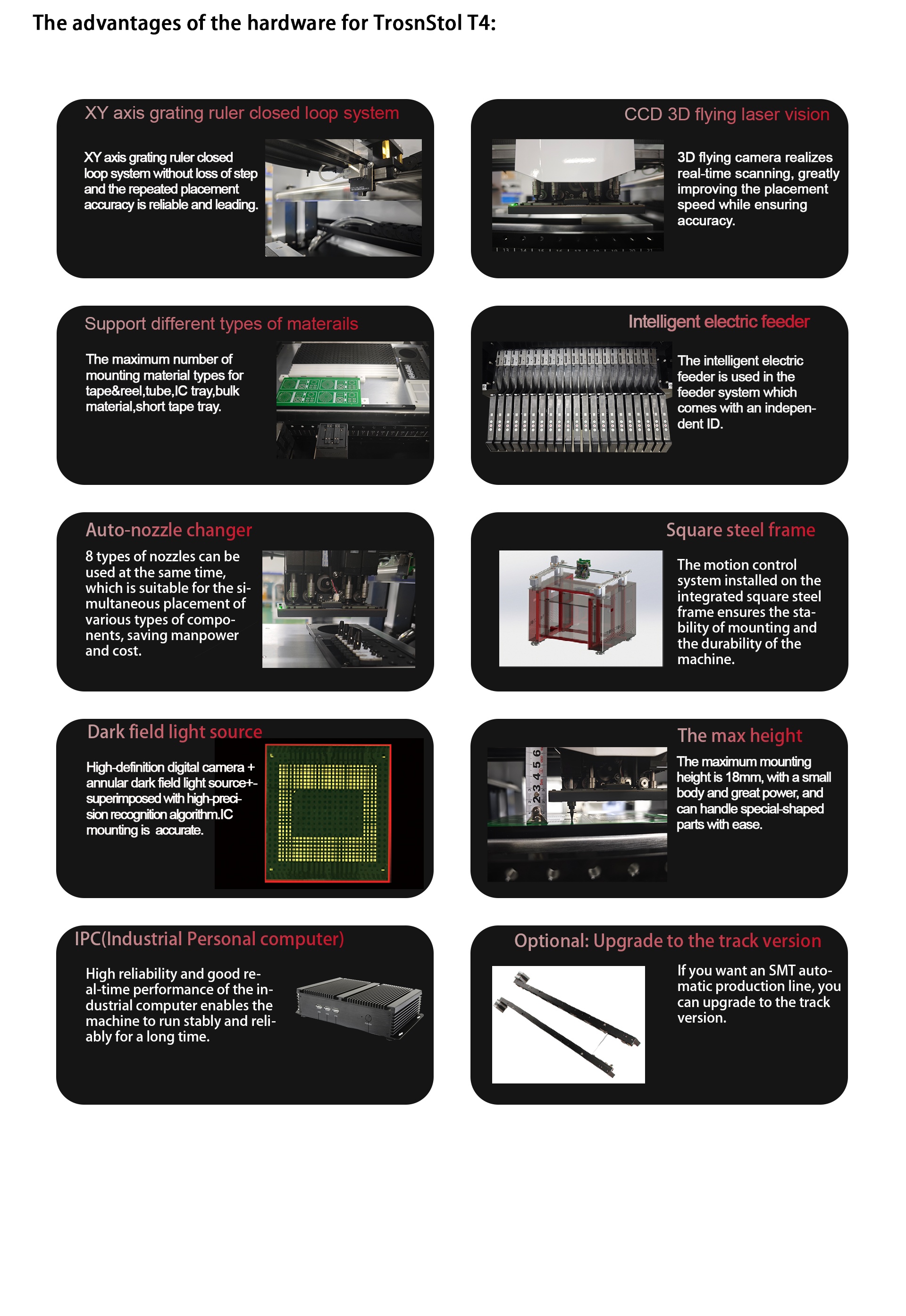

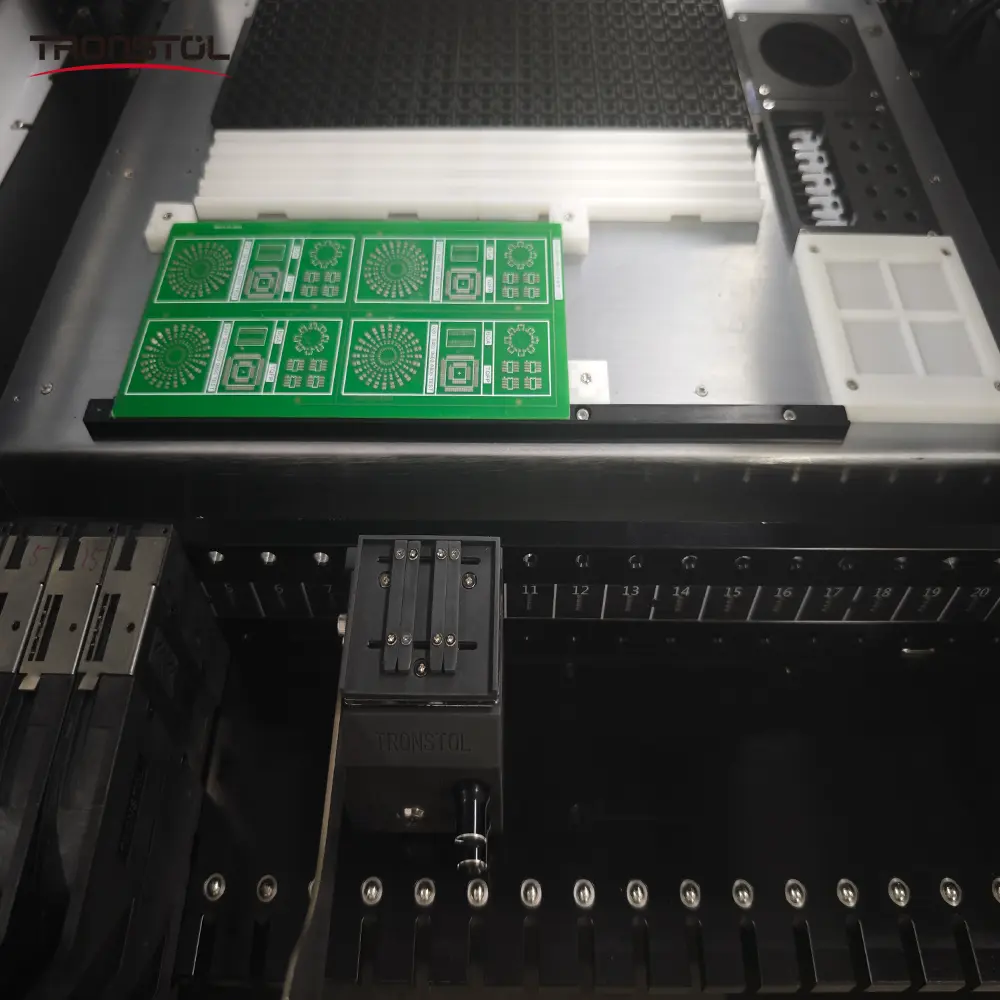

The specification of TronStol T4 | ||
Placement system | Number of heads | 4(WIth Auto nozzle changer 8 heads) |
Placement repeatability accuracy | ±35UM | |
Placement rotation | ±180° | |
Mounting speed | 10000CPH | |
Smallest compnent size | 0201 | |
Largest compnent size | 38*38mm | |
Placement area | 320mm*300mm | |
Applicable components | RC(0201,0402)QFP,QFN,BGA,LED common lamp beads,etc. | |
XY axis motion control | Step motor | |
Nozzle type | CN030,CN040,CN065,CN100,CN140,CN200,CN400,etc | |
Placement height | 18mm≤ | |
Feeding system | Tape width of feeder | 8mm,12mm,16mm,24mm |

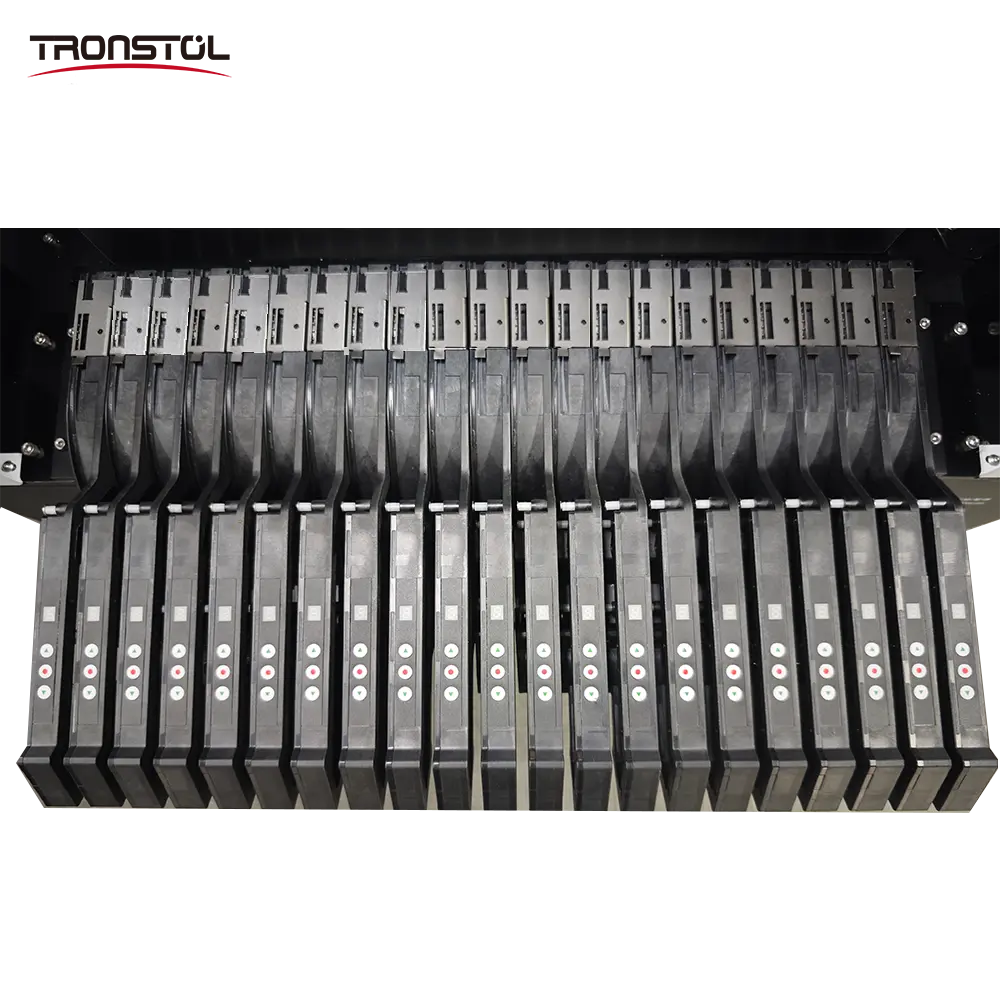

Maximum number of feeders | 42*(All 8mm,12mm or 16mm) Intelligent electric feeder | |
Feeder bank | Detachable feeder bank | |
Support material type | Tape&Reel/Tube/IC Tray/Bulk Tray/Short Type Tray | |
Maximum number vibraton feeders | 4/Set | |
Visual system | Light source configuration | Industrial grade area array light source+Industrial grade ring light source |
The number of CCD laser aerial camera | 4 | |
The number of mark camera | 1 | |
The number of IC camera | 1 | |
Control system | Software system | Linux |
Operating system | Independent research and development | |
Programmatically | Computer coordinate file import/Manual coordinate file editing,Support offline programming | |
Network | Network is available,remote operation is available | |
Basic parameters | Air source | No need external air source |
Machine voltage | AC 110V/220V | |
Machine power | 200W | |

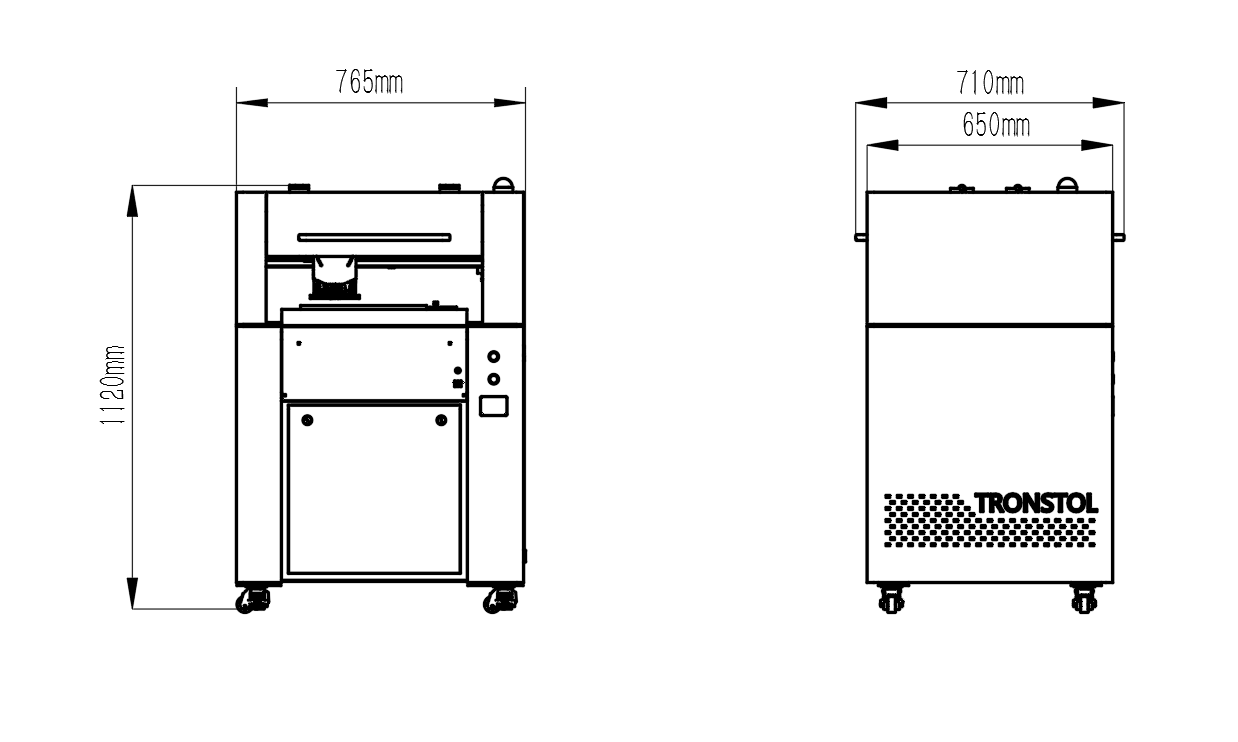

Machine size | Length 765mm*width 710mm*height 1100mm | |
Machine net weight | 90kgs | |
Mahicne gross weight | 100kgs | |
