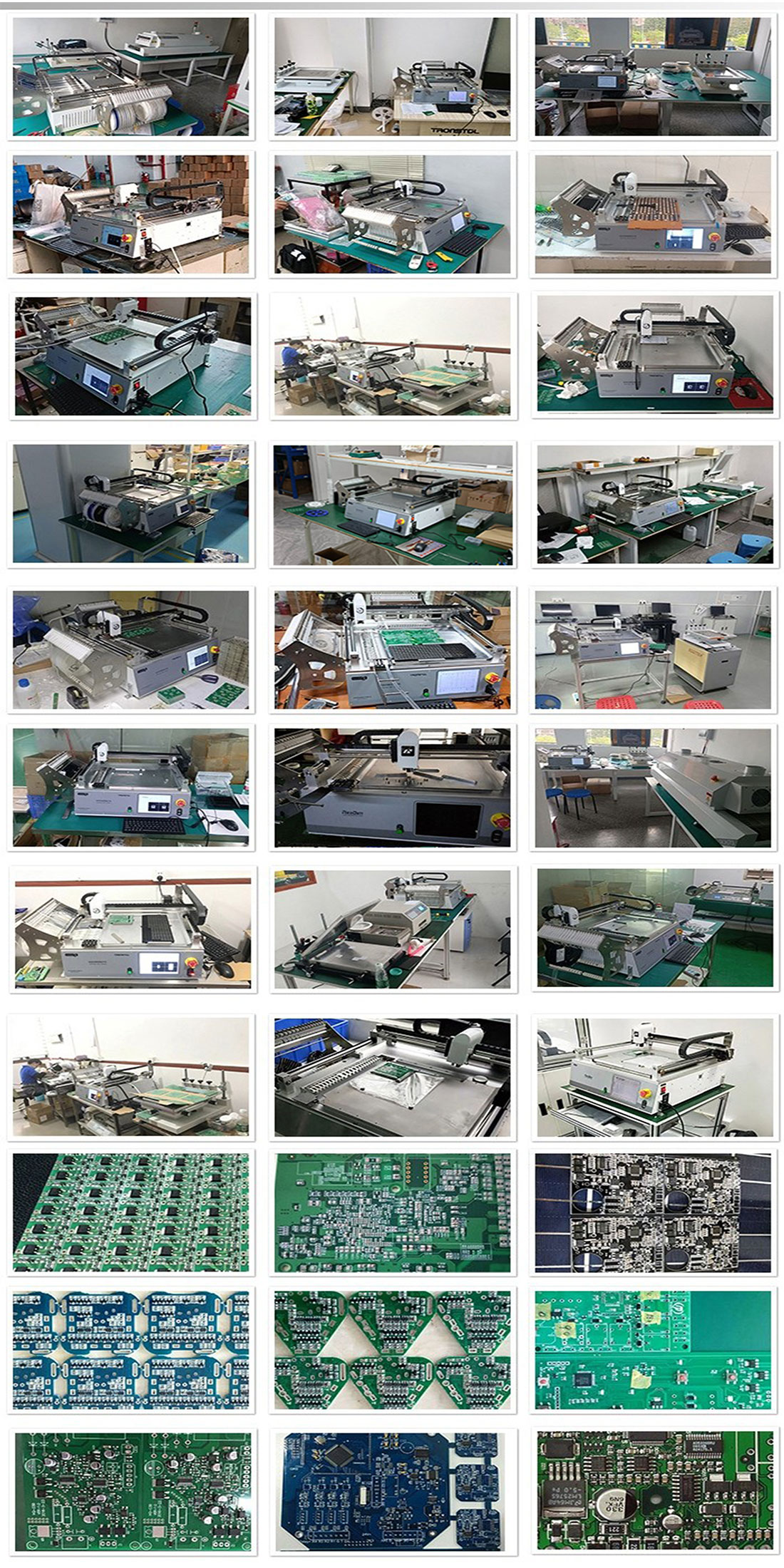

Pick and Place Machine TronStol 3V Advanced

Tabletop SMT Pick And Place Machine


This kind of SMT pick and place machine features a dual head, 46 feeder slots, vision system, and flexible positioning system. The desktop/tabletop SMT SMT pick and place machine is suitable for prototyping, small batch production with stable performance, and affordable price.


TronStol 3V Advanced Tabletop Pick And Place Machine Video



Specification of TronStol 3V Advanced Tabletop Pick And Place Machine


ModelTronStol 3V(Advanced)
Number Of Heads2
AlignmentVision
Rotation±180°
Placement Rate5000CPH(without vision);3500CPH(with vision)
Feeder CapacityTape feeder:44(all 8mm)
Vibration feeder: 0~5
Tray feeder: 5~10(Customization supported)
Board DimensionMaximum:320*390mm
Component RangeSmallest components:0402
Largest components: TQFP144
Max height:5mm
Numbers Of Pumps3
Placement Accuracy±0.02mm
Operate SystemWindowsXP-NOVA
Power160~200W
Electricity Supply110V/220V
Machine Size820(L)*680(W)*410(H)mm
Packing Size1001(L)*961(W)*568(H)mm
Net Weight60kg
Gross Weight88kg
From:Hangzhou Tronstol technology Co., Ltd.



Features of TronStol 3V Advanced Tabletop Pick And Place Machine


  • Vision system. An up-looking camera identifies and calibrates the different components, and tremendously improves the accuracy of placement from 0402 to TQFP

  • The table top manual SMT pick and place machine has an integrated controller, which can provide more stable performance. And it is easier to do maintenance for this desktop pick and place machine.

  • Automatic discharging device with electronic magnetic pressure type gear
