pick and place machine nozzle

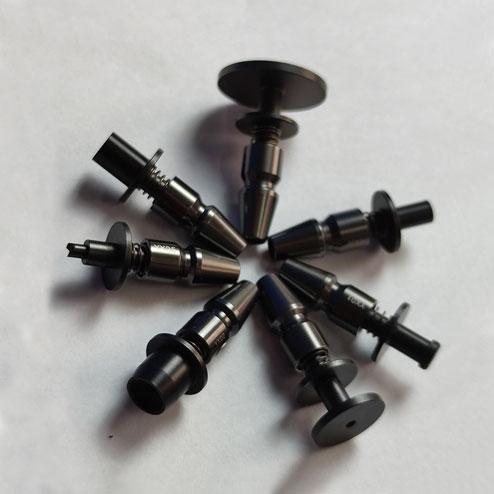

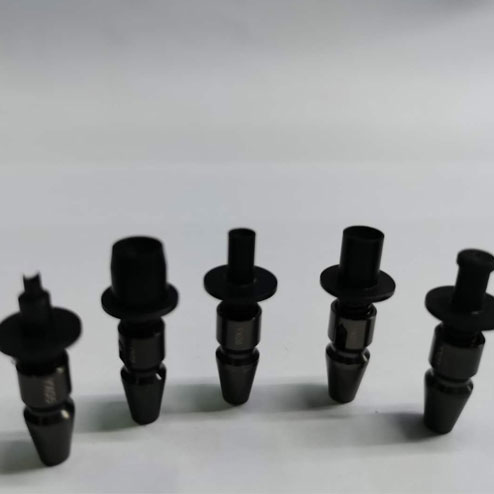

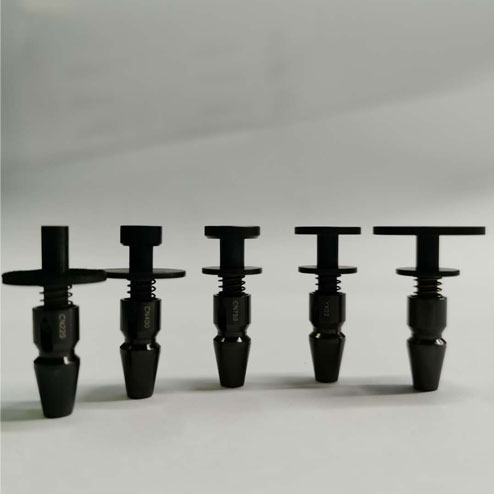

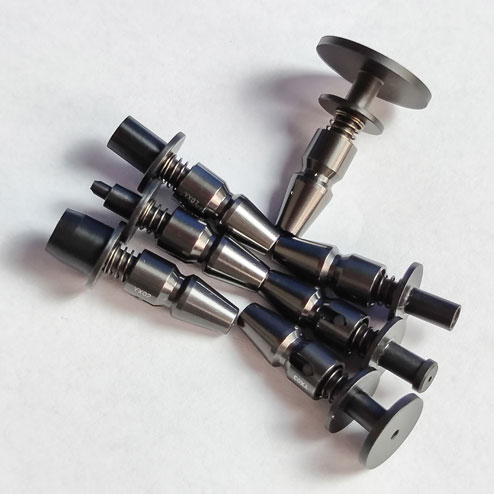

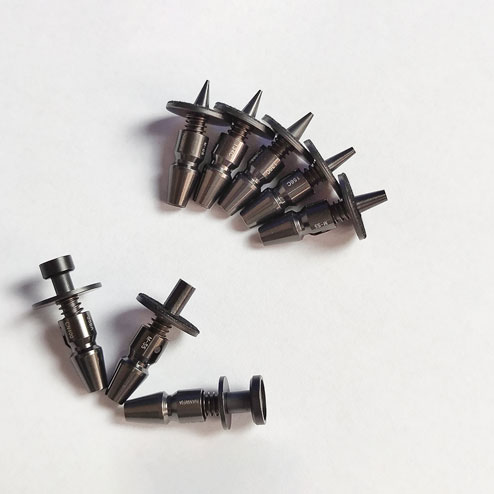

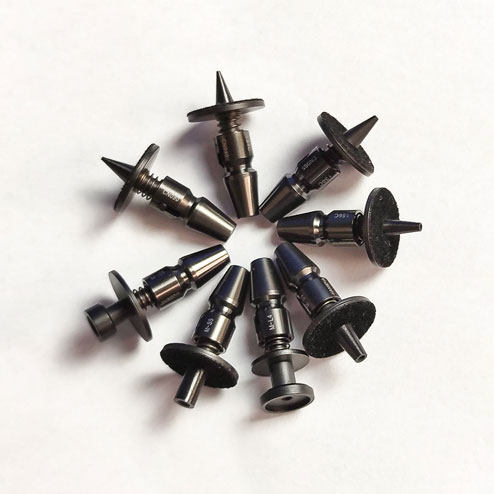

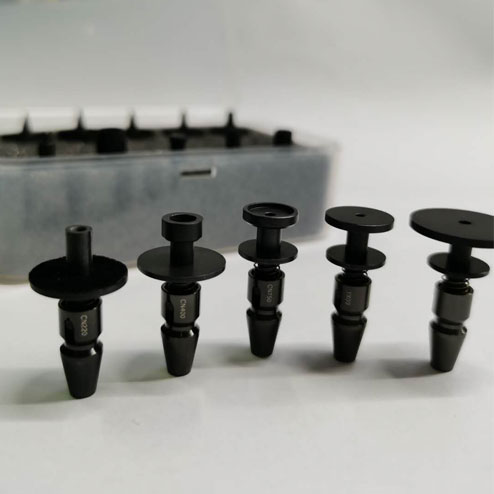

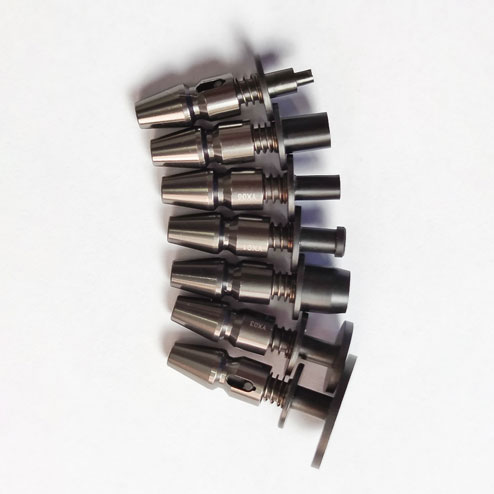

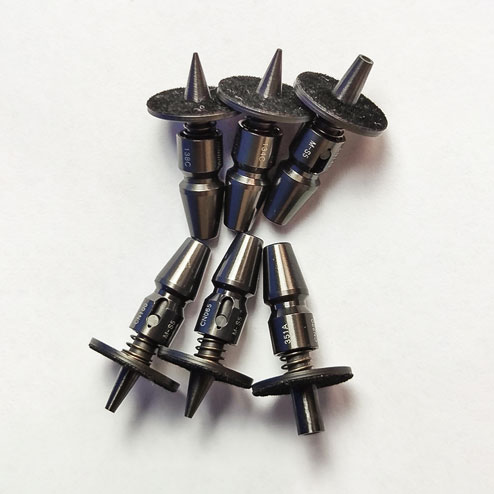

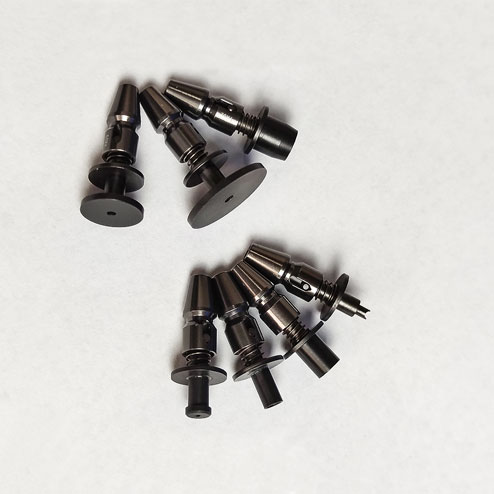

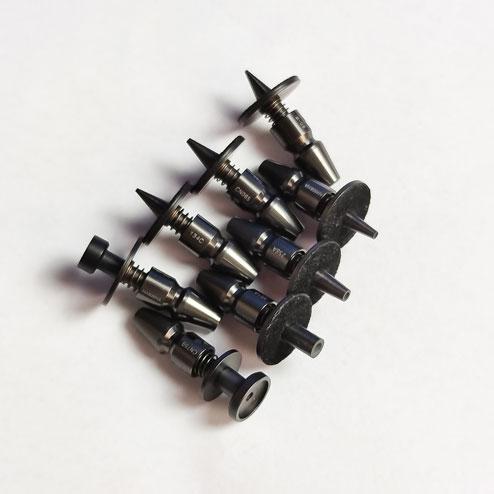

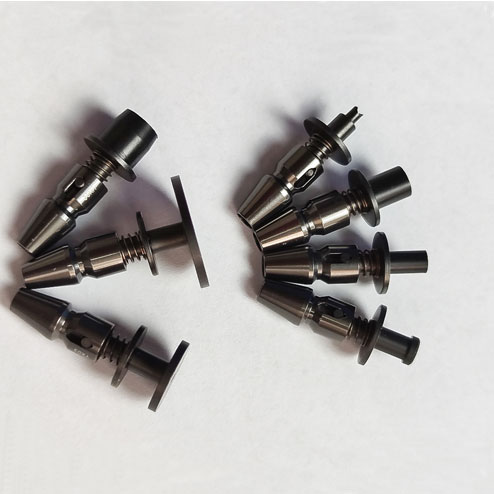

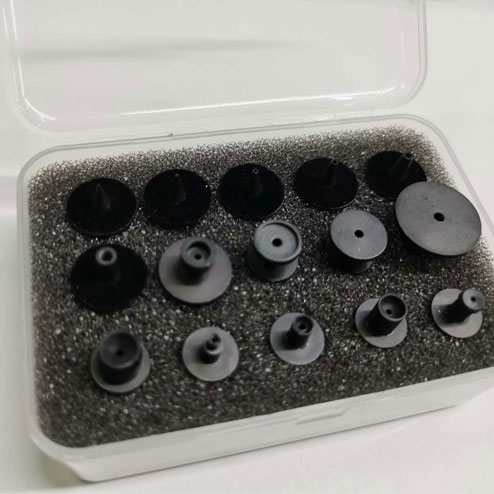

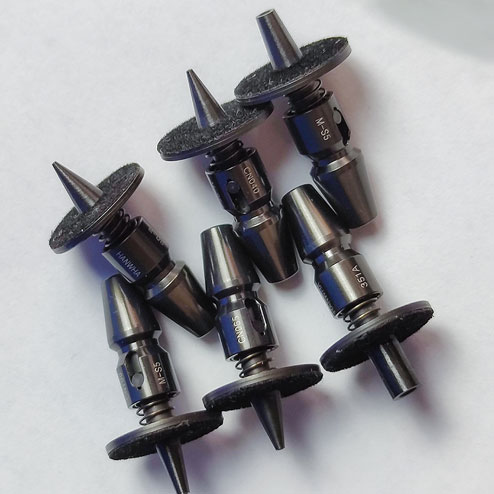

The pick and place machine nozzle is the key part of SMT to attach and release the absorbed components. It mainly uses the adsorption of vacuum to absorb the components and uses air blowing to put the absorbed components on the coordinate position of the circuit board.

Size of Nozzle


In order to assure placement accuracy, please select nozzles according to the shape and size of components.


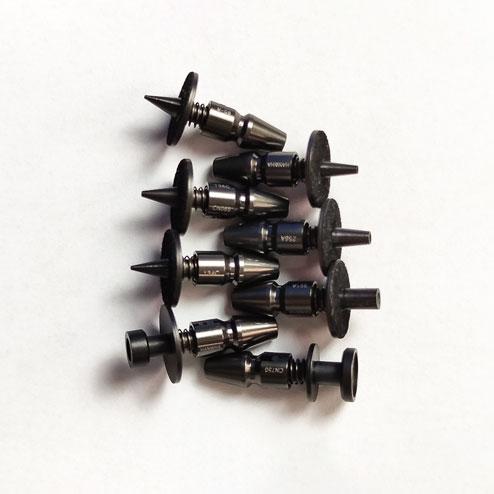

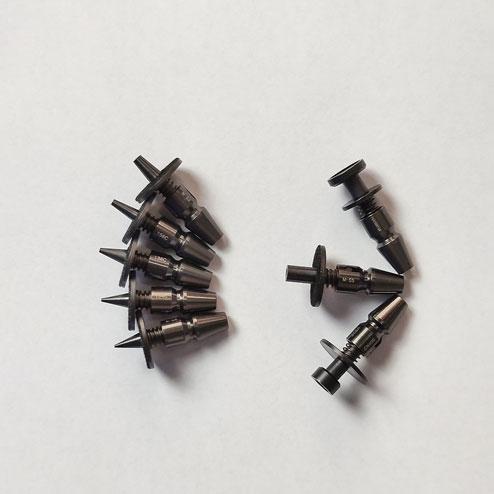

Table 1-1 Nozzle


Type

Regular

Regular

Regular

Regular

Regular

Regular

Regular

Regular

Model

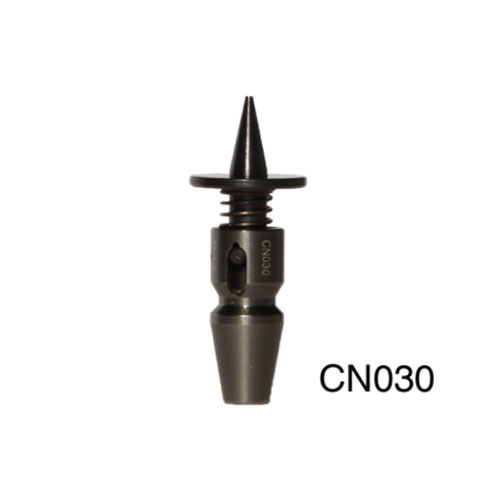

CN030

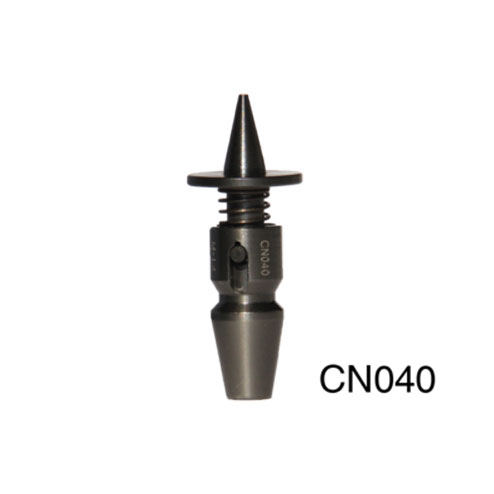

CN040

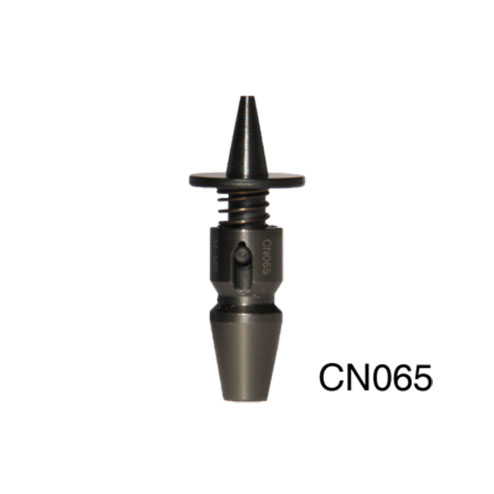

CN065

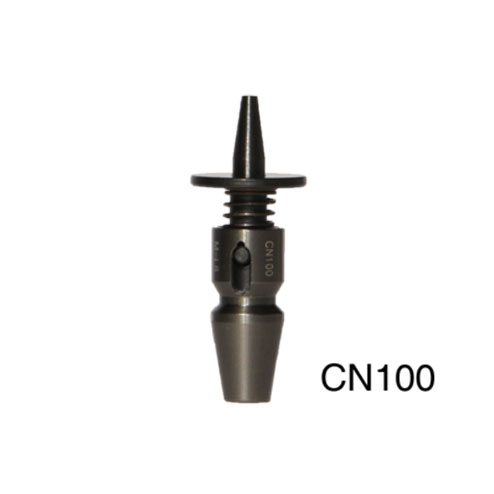

CN100

CN140

CN220

CN400

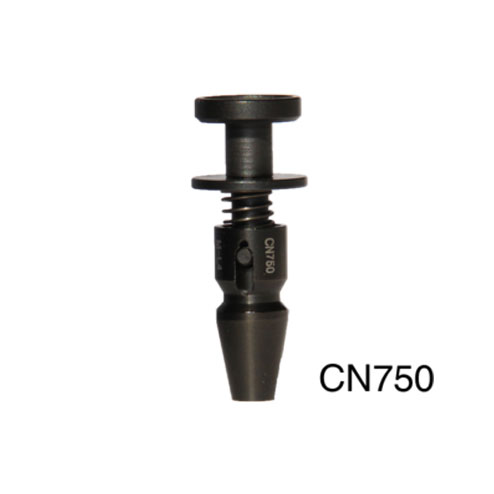

CN750

Illustration

Nozzle

Nozzle

Nozzle

Nozzle

Nozzle

Nozzle

Nozzle


External Diameter

0.6mm

0.8mm

1.0mm

1.8mm

2.0mm

3.6mm

5.0mm

9.0mm

Inner Diameter

0.3mm

0.4mm

0.7mm

1.0mm

1.4mm

2.2mm

4mm

7.5mm

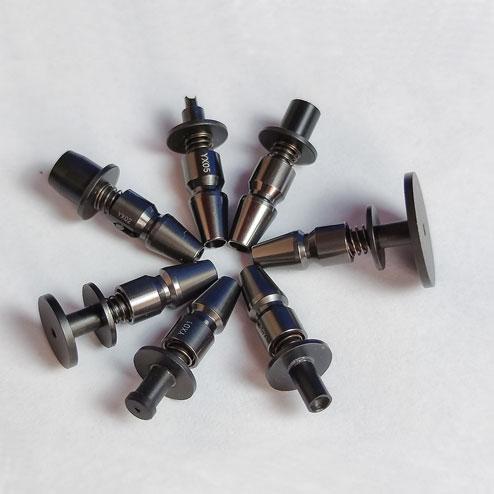

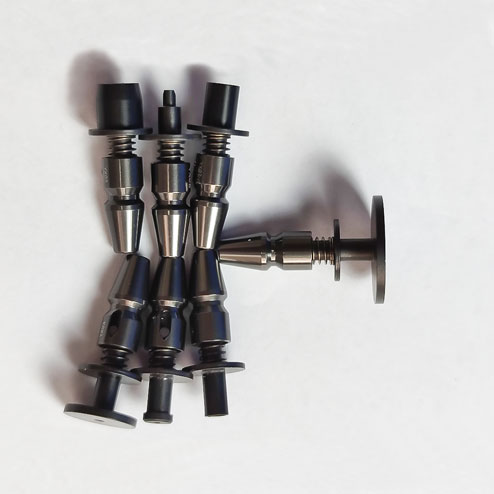

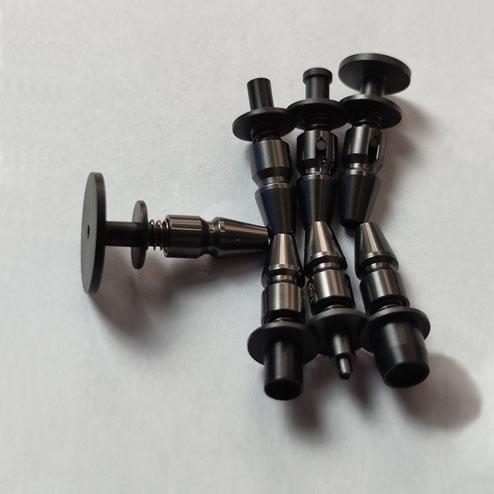

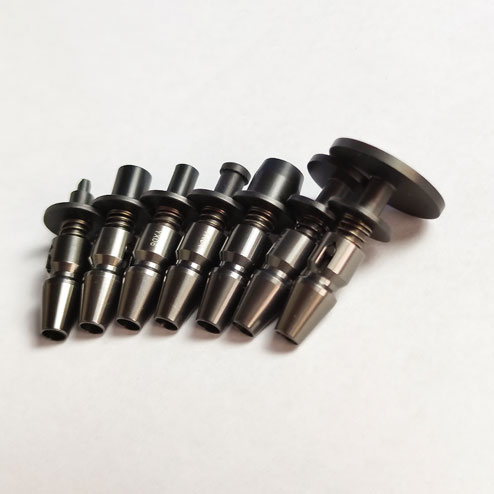

Type

Special

Special

Special

Special

Special

Special

Special

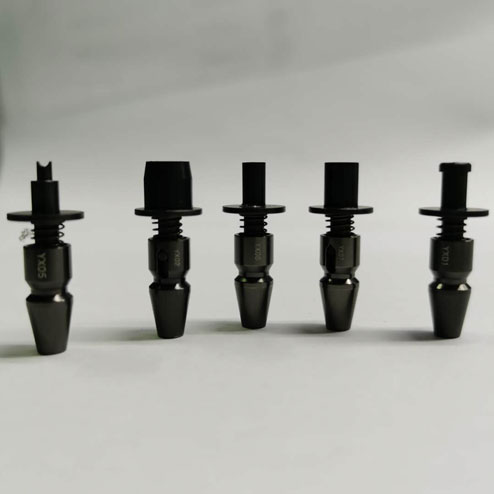

Model

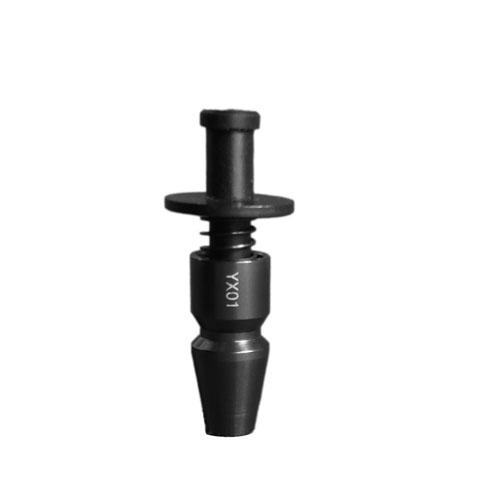

YX01

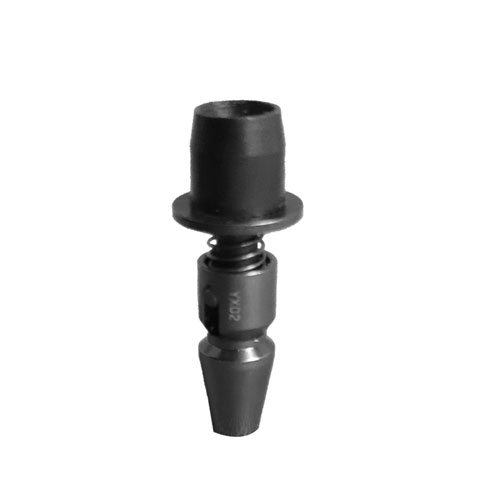

YX02

YX03

YX05

YX06

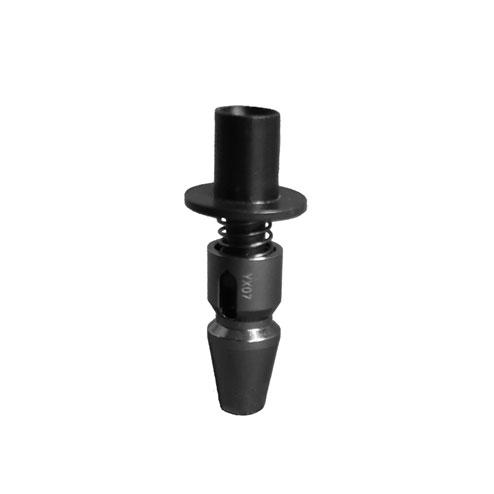

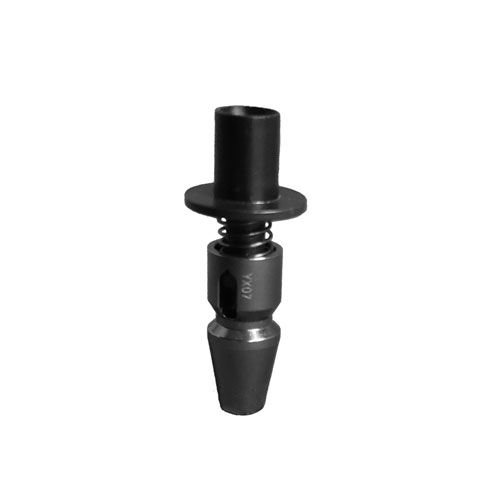

YX07

-

Illustration

Nozzle

Nozzle

Nozzle

Nozzle



Nozzle

Nozzle

Nozzle

Shape

Nozzle

Nozzle

Nozzle

Nozzle

Nozzle


Reference of nozzle selection


Table 1-2 Size comparison of nozzles


Model

Recommendation (Imperial System)

CN030

0201

CN040

0402

CN065

0402, 0603, etc.

CN100

0805, diode,1206, 1210, etc.

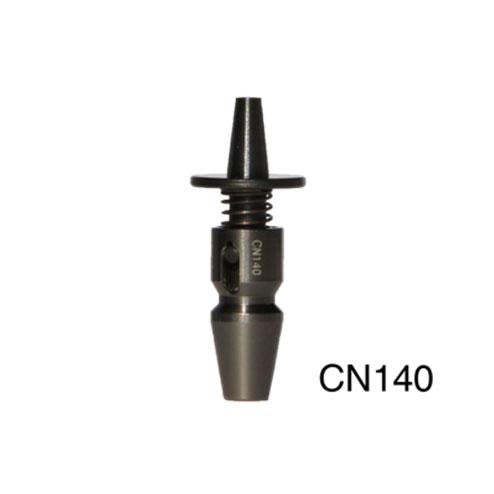

CN140

1206,1210,1812,2010, SOT23, 5050, etc.

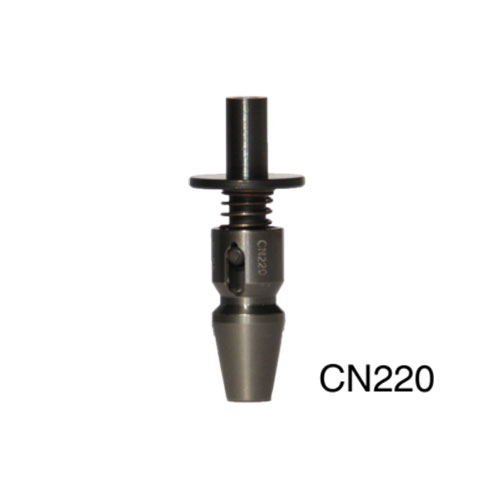

CN220

SOP series ICs, SOT89, SOT223, SOT252, etc.

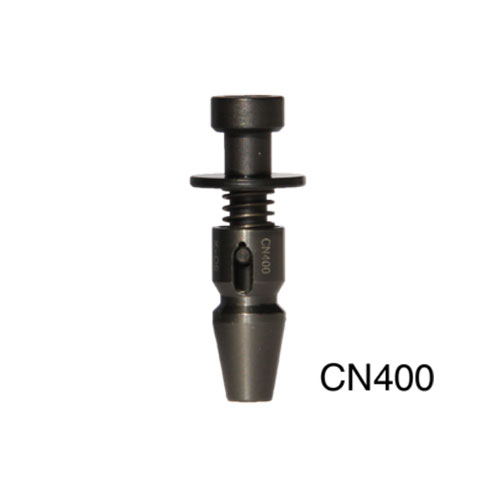

CN400

ICs from 5 to 12mm

CN750

IC bigger than 12mm

YX01

3528 Soft surface LED

YX02

High power dome shape LED

YX03

IC/BGA from 11mm to 17mm

YX05

4148 round diode

YX06

3535 ball shape LED (Spherical height 1.4mm, overall height 1.9mm)

YX07

5050 ball shape LED (Length 5mm, Width 5mm, Height 3.02mm)
